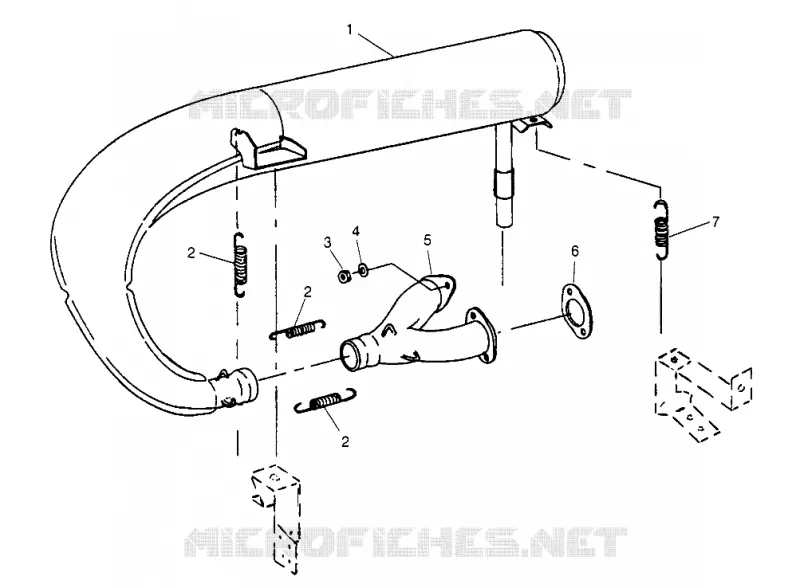

IMPIANTO DI SCARICO 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS E96256 (4931873187C009) PER EURO 500 CARB SKS - E962564 DEL 1996

IMPIANTO DI SCARICO 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS E96256 (4931873187C009)

1

MUFFLER

1260709029

Non disponibile

2

SPRING EXHAUST(10)

7042031

Non disponibile

3

NUT(10)

3080285

Non disponibile

4

WASHER LOCK (10)

3080530

Non disponibile

5

MANIFOLD WELD BLK.

1260665029

Non disponibile

6

GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA

3084439

Non disponibile

7

SPRING-EXHAUST

7042029

Non disponibile

Gli schemi sono forniti a solo scopo informativo. In caso di dubbi, i nostri specialisti sono a disposizione per rispondere alle vostre domande. Quando aggiungete un ricambio al carrello, assicuratevi di selezionare la quantità desiderata. Il prezzo unitario indicato si riferisce a una singola unità di ciascun codice ricambio.
