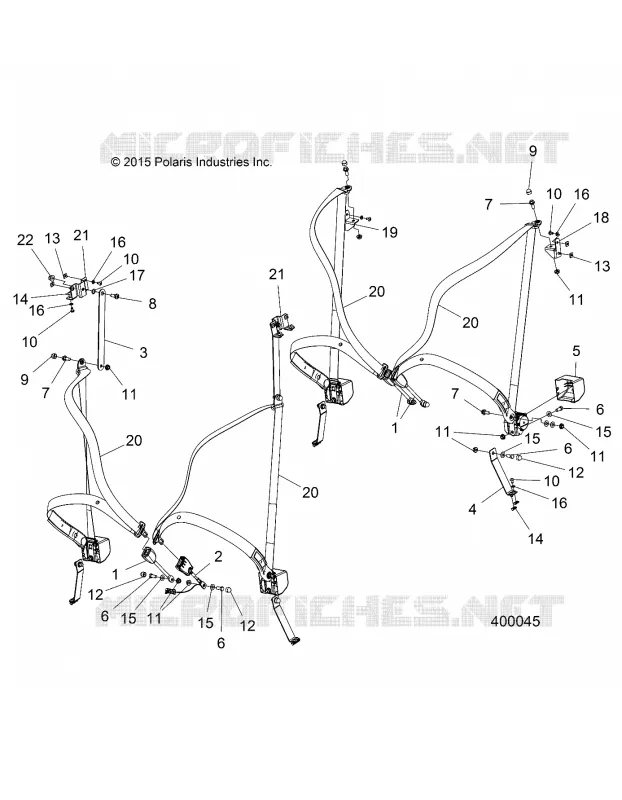

BODY, SEDEBELTS (BUILT 11/9/15 AND BEFORE) PER GEM (R33) - L16G2/4/6/EURO ALL OPTIONS DEL 2016

BODY, FARO FANALES, LED

BODY, SEDEBELTS (BUILT 11/9/15 AND BEFORE)

1

RCVR SFTY RESTRAINT-BUCKET

2634626

Non disponibile

2

RECEIVER-SEATBELT SWITCH

2635772

Non disponibile

3

BRKT-HANGER SEATBELT BLK

5261027067

Non disponibile

4

BRKT-STRAP SEATBASE BLK

5261030458

Non disponibile

5

COVER-RETRACTOR SAFETY RSTRNT

5439659

Non disponibile

6

SCR-7/16-20X1 HX CP GR5-Y

7512520

Non disponibile

7

BLT SHLDR-HX FLG 7/16 NF EU

7519546

Non disponibile

8

BLT SHLDR-BTN HD TORX EU

7519547

Non disponibile

9

PROTECTOR COVER NUT 10MM

7519619

Non disponibile

10

SCR-TXTH-M8X1.25X15 8.8ZB3 P80

7520391

Non disponibile

11

NUT FLANGE

7542522

Non disponibile

12

NUT-6MM

7547603

Non disponibile

13

NUT-SQR M8X1.25 ZPC Ã¯Â¿Â½

7547792

Non disponibile

14

NUT-M8X1.25 ROLL-IN LEAF

7547806

Non disponibile

15

WASHER-.453X1.0X.078-Y

7555883

Non disponibile

16

WASHER-8.4X16.0X1.6 SPC

7556305

Non disponibile

17

WSHR-WAVE .609X.859-.010 SS

7556678

Non disponibile

18

WELD-MNT SEATBELT 3PT LH BLK

1021528458

Non disponibile

19

WELD-MNT SEATBELT 3PT RH BLK

1021529458

Non disponibile

20

RETRACTOR-SEATBELT

2635774

Non disponibile

21

BRKT-MNT SEATBELT 3PT BLK

5261023458

Non disponibile

22

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

Non disponibile

Gli schemi sono forniti a solo scopo informativo. In caso di dubbi, i nostri specialisti sono a disposizione per rispondere alle vostre domande. Quando aggiungete un ricambio al carrello, assicuratevi di selezionare la quantità desiderata. Il prezzo unitario indicato si riferisce a una singola unità di ciascun codice ricambio.
