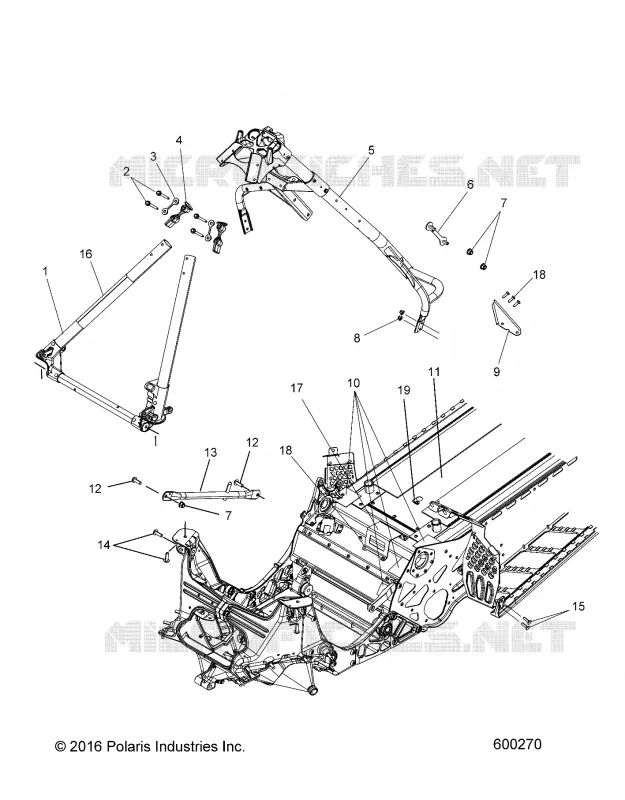

TELAIO, TELAIO ASM. AND OVER STRUCTURE PER 800 RMK ASSAULT 155 / SC SELECT DEL 2019

TELAIO, TELAIO ASM. AND OVER STRUCTURE

1

ASM. FRAME TUBE FRONT RMK CF

1024053

Non disponibile

2

SCR-HXFL-M6X1X50 10.9 ZODP30DP

7519967

Non disponibile

3

SHIM-TUBE CAST

5633083

Non disponibile

4

SPACER TUBE CAST

5632923

Non disponibile

5

ASM. FRAME TUBULAR REAR RMK

1019339

Non disponibile

6

ASM. STUD PLATE

1019337

Non disponibile

7

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

Non disponibile

8

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

Non disponibile

9

BRKT. SUPPORT TOE STOP

5262012

Non disponibile

10

PAD

5814353

Non disponibile

11

ASM-TUNNEL 155 ASSLT SVC IND SKY BLUE [SNOW CHECK SELECT]

1020652737

Non disponibile

11

ASM-CHASSIS MNT155 ASSLT RED [SNOW CHECK][SNOW CHECK SELECT][INCL. BULKHEAD AND CHAINCASE]

1020651293

Non disponibile

11

ASM-CHASSIS MNT155 ASSLT IND SKY BLUE [SNOW CHECK][SNOW CHECK SELECT][INCL. BULKHEAD AND CHAINCASE]

1020651737

Non disponibile

11

ASM-TUNNEL 155 ASSLT SVC ORANGE BURST [SNOW CHECK SELECT]

1020652647

Non disponibile

11

ASM-TUNNEL 155 ASSLT SVC NAT [SNOW CHECK SELECT]

1020652309

Non disponibile

11

ASM-CHASSIS MNT155 ASSLT LIME SQUEEZE [SNOW CHECK][SNOW CHECK][INCL. BULKHEAD AND CHAINCASE]

1020651630

Non disponibile

11

ASM-CHASSIS MNT155 ASSLT BLACK [SNOW CHECK][SNOW CHECK SELECT][INCL. BULKHEAD AND CHAINCASE]

1020651067

Non disponibile

11

ASM-CHASSIS MNT155 ASSLT NAT [SNOW CHECK][SNOW CHECK SELECT][INCL. BULKHEAD AND CHAINCASE]

1020651309

Non disponibile

11

ASM-CHASSIS MNT155 ASSLT ORANGE BURST [SNOW CHECK][SNOW CHECK SELECT][INCL. BULKHEAD AND CHAINCASE]

1020651647

Non disponibile

11

ASM-TUNNEL 155 ASSLT SVC BLACK [SNOW CHECK SELECT]

1020652067

Non disponibile

11

ASM-TUNNEL 155 ASSLT SVC LIME SQUEEZE [SNOW CHECK SELECT]

1020652630

Non disponibile

11

ASM-TUNNEL 155 ASSLT SVC RED [SNOW CHECK SELECT]

1020652293

Non disponibile

12

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

Non disponibile

13

BRACE TUBE RH E-COAT

1019861067

Non disponibile

14

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

Non disponibile

15

SCR-RHCAR-M6X1.0X22 8.8 ZPC

7519338

Non disponibile

16

FOIL-100MM X 200MM

5814124

Non disponibile

17

BRKT. AIR BOX SUPPPORT

5258618

Non disponibile

18

RIVET-3/16-.090-.290

7661637

Non disponibile

19

CLAMP-NYLON CABLE 1/4#

7080539

Non disponibile

19

RIVET-4.8MM DIA-1.5-6.0GRIP BK

7662251

Non disponibile

Gli schemi sono forniti a solo scopo informativo. In caso di dubbi, i nostri specialisti sono a disposizione per rispondere alle vostre domande. Quando aggiungete un ricambio al carrello, assicuratevi di selezionare la quantità desiderata. Il prezzo unitario indicato si riferisce a una singola unità di ciascun codice ricambio.
