FUEL SYSTEM, RAIL, LINES AND ACCELERATORE BODY per 800 AXYS SKS 146 del 2019

FUEL SYSTEM, FUEL TANK ASM.

TOOLS, BELT HOLDER, TOOLS, AND OWNERS MANUAL

FUEL SYSTEM, RAIL, LINES AND ACCELERATORE BODY

1

CLIP-HARNESS 3-13MM INTERLCK

7081871

Non disponibile

2

CABLE TIE

7080356

Non disponibile

3

ASM. FUEL LINE RETURN

2521345

Non disponibile

4

ASM. FUEL LINE SUPPLY

2521344

Non disponibile

5

HARNESS INJECTOR WITH LEAD

4014715

Non disponibile

6

SCR-HXFL-M6X1.0X60 10.9 ZY3

7519244

Non disponibile

7

O-RING-BOSCH EV-14 UPPER BLUE

1500198

Non disponibile

8

O-RING

5412891

Non disponibile

9

BUSHING RUBBER

5436287

Non disponibile

10

ASM. THROTTLE BODY 48MM

1205241

Non disponibile

11

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Non disponibile

12

ASM. FUEL RAIL AS

2521382

Non disponibile

13

CLIP-ROUTING

7081496

Non disponibile

14

WASHER-6.2X14.25X2 ZC

7556588

Non disponibile

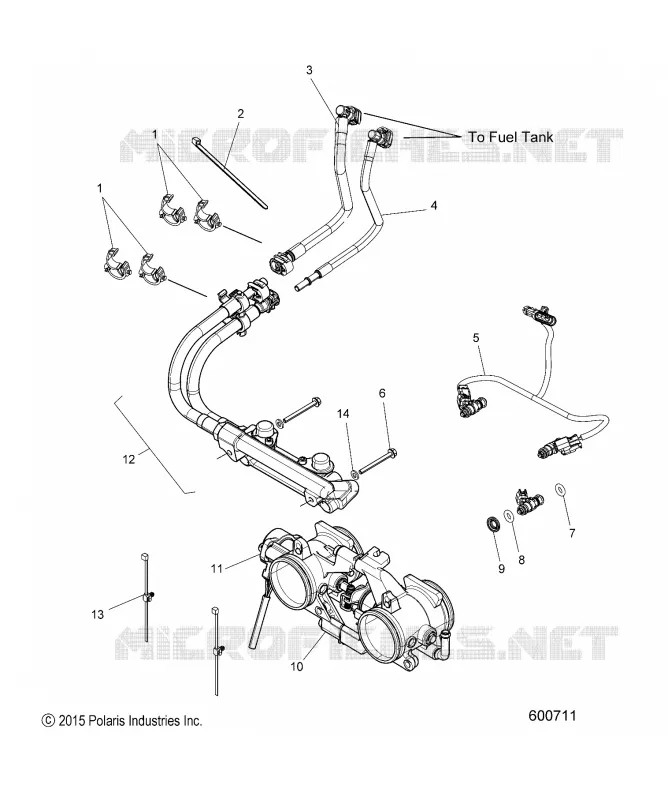

In questa pagina trovate lo schema dettagliato :label POLARIS. Questa vista esplosa consente di identificare i diversi componenti necessari per la manutenzione della vostra macchina e di trovare rapidamente il relativo codice ricambio originale POLARIS.

Gli schemi non sono vincolanti. In caso di dubbi, i nostri professionisti sono a disposizione per rispondere alle vostre domande. Quando aggiungete un ricambio al carrello, assicuratevi di ordinare la quantità desiderata. Il prezzo unitario indicato è il prezzo per ogni riferimento per una quantità pari a 1.
